Mingguang Haomiao Security Protection Technology Corporation

Haomiao Technology is becoming the top brand in the field of industrial fire control of China!

10000L Middle Size Dry Powder Foam /dry Powder Water Combination Fire Truck

I. Main feature 1. The vehicle is beautiful modelling, sit comfortable. 2. Chassis acceleration performance is good, power capacity is big. 3. Humanized design, fire extinguishing system centralized control, intuitive and simple operation. 4. Tank capacity is big , extinguishing effect is good,...

Send Inquiry
Product Details

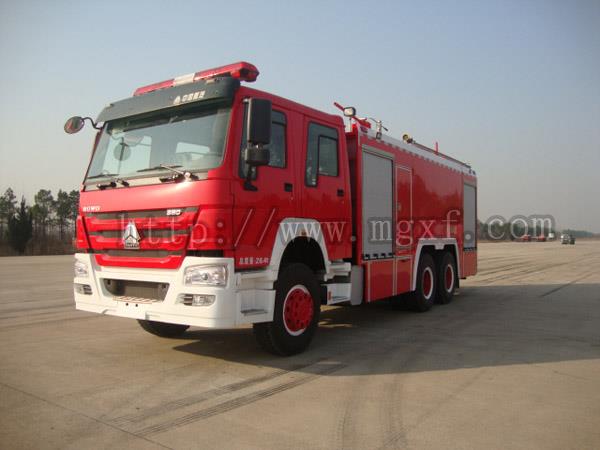

10000L Middle Size Dry Powder Foam /dry Powder Water Combination Fire Truck

I. Main feature
1. The vehicle is beautiful modelling, sit comfortable.
2. Chassis acceleration performance is good, power capacity is big.
3. Humanized design, fire extinguishing system centralized control, intuitive and simple operation.
4. Tank capacity is big , extinguishing effect is good, widely used.
II. Range of application
It is suitable for the oil, petrochemical enterprises, airports, terminals, terminal and other professional and urban public security fire brigades, large area of oil fire and general solid fire for fighting.

Main performance parameter:

Item

Parameter

Chassis

SINOTRUK

Dimension(mm)

9800×2500×3600

Seating capacity

6

Engine power(kW)

276/2200r/min

Wheel base(mm)

4300+1400

Max. speed(km/h)

90

Tank capability(kg)

10000

Water:6000

Foam:2000

Dry powder:2000

Pump model

RSD

Pump flow(L/s)

90/1.0MPa

Fire monitor

Model

Scorpion EXM SM-2000E

Flow(L/s)

80

shooting distance (m)

Water≥75,Foam≥70

Dry powder monitor

Model

PF30

Effective discharge rate
(kg/s)

≥30

shooting distance (m)

≥35

Haomiao reserves the right to modify its main performance parameters and photos due to technology advancement.


If you're in need of the high quality 10,000l middle size dry powder foam /dry powder water combination fire truck, welcome to contact our factory for the truck. We are one of the professional and experienced China manufacturers and suppliers of various fire trucks. We will offer you good after-sale service and fast delivery.
