In the high - stakes world of firefighting, fire tankers are indispensable assets. These vehicles are not just large containers on wheels; they are sophisticated pieces of equipment equipped with a variety of monitoring systems to ensure their efficient and safe operation. As a leading fire tanker supplier, we understand the critical role these monitoring systems play, and in this blog, we will explore the different types of monitoring systems found on fire tankers.
Liquid Level Monitoring System
One of the most fundamental monitoring systems on a fire tanker is the liquid level monitoring system. Fire tankers carry large volumes of water or foam, and it is crucial to know exactly how much is available at any given time. This system uses sensors, often ultrasonic or float - type sensors, to measure the level of the liquid in the tank.
Ultrasonic sensors work by emitting high - frequency sound waves that bounce off the surface of the liquid and return to the sensor. By measuring the time it takes for the sound waves to travel, the system can calculate the distance to the liquid surface and thus determine the liquid level. Float - type sensors, on the other hand, use a floating device that rises and falls with the liquid level. The position of the float is then translated into a level reading.
The data from the liquid level monitoring system is typically displayed on a dashboard inside the fire tanker's cab. This allows the firefighters to monitor the remaining liquid supply during a firefighting operation. For example, if the level is getting low, they can plan to refill the tank or adjust their firefighting strategy accordingly. Our 2000L Light Duty Water Tank Fire Truck is equipped with a state - of - the - art liquid level monitoring system to ensure accurate and real - time monitoring of the water supply.
Pressure Monitoring System
Another vital monitoring system is the pressure monitoring system. Fire hoses need to deliver water or foam at a specific pressure to be effective in extinguishing fires. The pressure monitoring system measures the pressure in the fire tanker's pumping system, the hoses, and at the nozzle.
There are different types of pressure sensors used in this system. For instance, strain - gauge pressure sensors work by measuring the deformation of a thin metal diaphragm when pressure is applied. Piezoelectric pressure sensors generate an electrical charge in response to pressure changes.

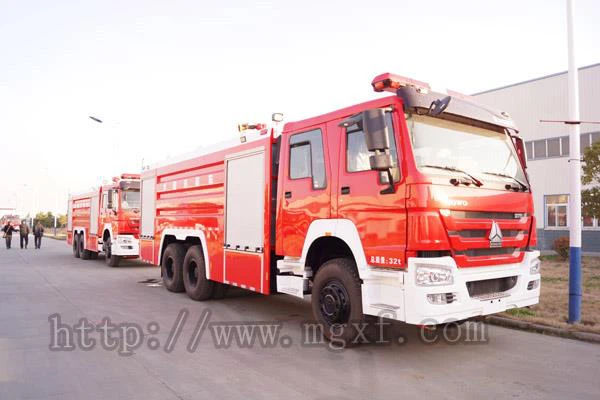

The pressure readings are displayed on the dashboard, and if the pressure is too high or too low, it can indicate a problem. High pressure could lead to hose bursts or damage to the pumping system, while low pressure may result in ineffective firefighting. Our 16000L Foam Tank Fire Truck has a highly accurate pressure monitoring system that helps firefighters maintain the optimal pressure for efficient firefighting operations.
Temperature Monitoring System
Temperature monitoring is also an essential part of a fire tanker's monitoring systems. The engine, the pumping system, and the hydraulic components generate heat during operation. Excessive heat can cause damage to these components and reduce their lifespan.
Thermocouples and resistance temperature detectors (RTDs) are commonly used to measure temperature. Thermocouples work based on the principle that when two different metals are joined at two junctions, a voltage is generated that is proportional to the temperature difference between the junctions. RTDs, on the other hand, change their electrical resistance as the temperature changes.
The temperature monitoring system continuously checks the temperature of critical components. If the temperature exceeds a safe limit, an alarm will sound, alerting the firefighters. They can then take appropriate action, such as shutting down the system to prevent damage. Our 5000L Fire Fighting Truck is designed with a comprehensive temperature monitoring system to safeguard the vehicle's components.
Flow Rate Monitoring System
The flow rate monitoring system measures the volume of water or foam flowing through the fire tanker's pumping system and hoses per unit of time. This information is crucial for determining the effectiveness of the firefighting operation.
Magnetic flow meters and turbine flow meters are commonly used in fire tankers. Magnetic flow meters work by measuring the voltage generated when a conductive fluid (such as water) flows through a magnetic field. Turbine flow meters use a turbine that spins as the fluid passes through it. The speed of the turbine is proportional to the flow rate.
By knowing the flow rate, firefighters can adjust the pumping speed and the nozzle settings to achieve the desired amount of water or foam delivery. This ensures that the fire is extinguished as quickly and efficiently as possible.
GPS and Vehicle Tracking System
In addition to the above - mentioned systems, modern fire tankers are often equipped with GPS and vehicle tracking systems. These systems use satellite technology to determine the location of the fire tanker at all times.
The GPS system provides real - time location data, which can be used for several purposes. Firstly, it helps the fire department dispatch the nearest fire tanker to a fire incident. Secondly, it allows the department to track the movement of the fire tanker during an operation, ensuring that it is on the most efficient route.
Moreover, the vehicle tracking system can record the vehicle's speed, acceleration, and braking patterns. This data can be used for maintenance and safety analysis. For example, if a fire tanker is frequently braking hard, it may indicate a problem with the driver's behavior or the vehicle's brakes.
Integration and Automation
Many of these monitoring systems are integrated into a central control system. This allows for seamless communication between different sensors and components. For example, if the pressure monitoring system detects a drop in pressure, it can automatically adjust the pumping speed to maintain the desired pressure.
Automation in fire tankers also extends to other functions. For instance, some fire tankers can automatically refill the tank when the liquid level gets low, as long as a water source is available. This reduces the workload on the firefighters and allows them to focus on the firefighting operation.
Conclusion
In conclusion, the monitoring systems on fire tankers are essential for their safe and efficient operation. From liquid level and pressure monitoring to temperature, flow rate, and GPS tracking, each system plays a crucial role in ensuring that the fire tanker can perform its mission effectively.
As a fire tanker supplier, we are committed to providing high - quality fire tankers equipped with the latest and most reliable monitoring systems. Our range of fire tankers, including the 2000L Light Duty Water Tank Fire Truck, 16000L Foam Tank Fire Truck, and 5000L Fire Fighting Truck, are designed to meet the diverse needs of fire departments around the world.
If you are interested in purchasing a fire tanker or learning more about our products and monitoring systems, we encourage you to contact us for a detailed discussion. Our team of experts is ready to assist you in finding the perfect fire tanker solution for your requirements.
References
- "Fire Apparatus: Pumping, Aerial, and Support Operations" by John J. Coyle
- "Fire Protection Handbook" by the National Fire Protection Association
